Description
he three Pretech SteerFlex bullhorn hydraulic steering kits we stock are engineered for recreational, commercial and fishing vessels. Built with advanced technology and superior craftsmanship, these steering solutions are designed for smooth handling, durability and maximum safety on the water. Every system is tested rigorously to meet stringent quality standards and comes with reliable warranty support.
Pretech steering systems are compliant with international marine safety regulations (CE, ABYC and NMMA) and certified to ensure long-term performance and trust on every trip. The kit name incorporates the maximum horsepower it is rated for, making it easy to select the correctly rated system for your vessel.
Choose your kit
- STSF115, SteerFlex SF-115: single outboard up to 115 HP. KH18M helm pump (18 cc, mid mount), KC-115 cylinder, 2 x CH-5.0 hoses (5 m), KO hydraulic fluid 2 L. 5.2 wheel turns lock to lock, 350 mm wheel recommended.
- STSF175, SteerFlex SF-175: single outboard up to 175 HP. KH22 helm pump (22 cc), KC-175 cylinder, 2 x CH-7.5 hoses (7.5 m), KO hydraulic fluid 2 L. 5.6 wheel turns lock to lock, 400 mm wheel recommended.

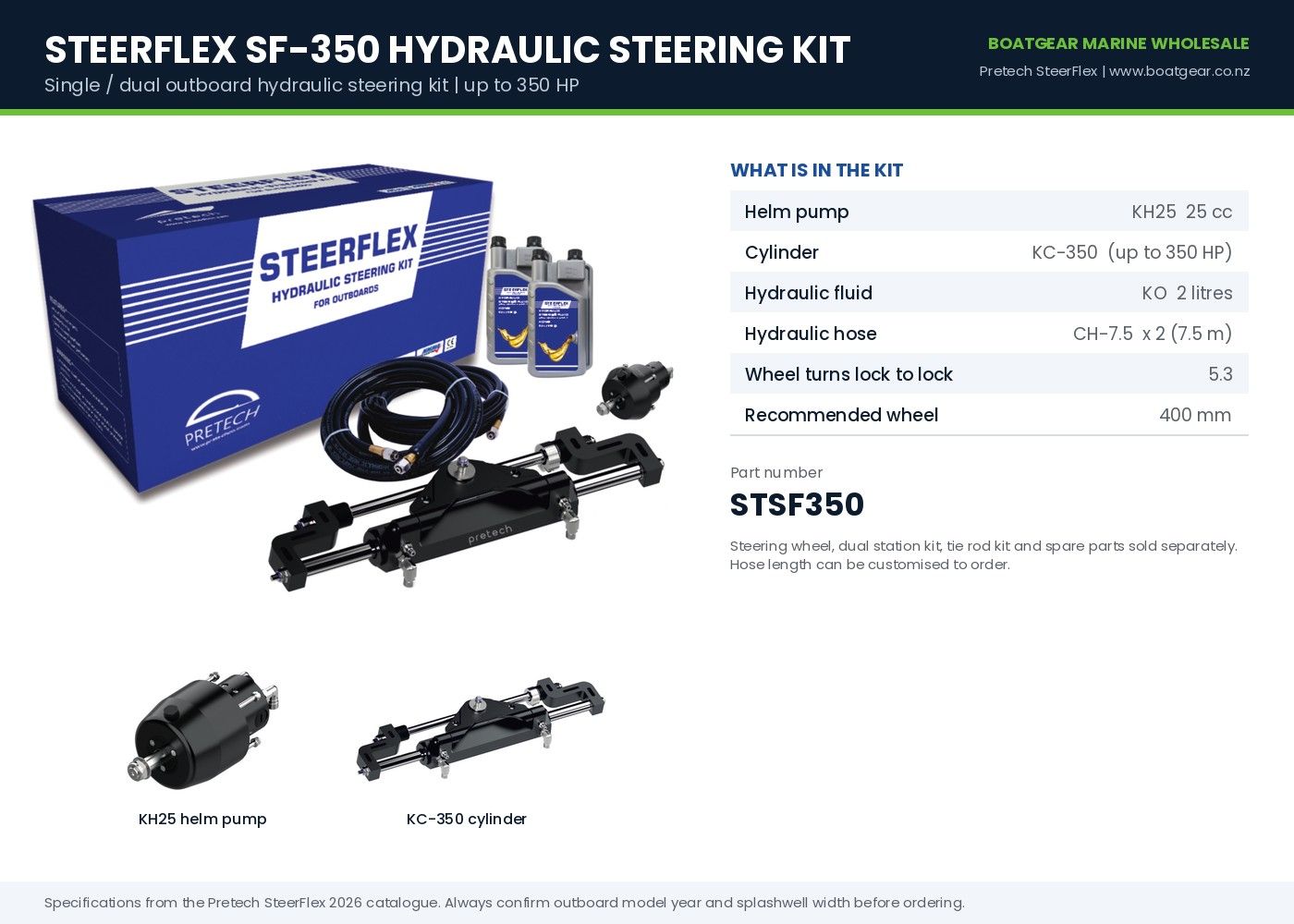

- STSF350, SteerFlex SF-350: single outboard up to 350 HP, or dual outboards with a tie rod kit (up to 450 HP non counter rotating, 600 HP counter rotating). KH25 helm pump (25 cc), KC-350 cylinder, 2 x CH-7.5 hoses (7.5 m), KO hydraulic fluid 2 L. 5.3 wheel turns lock to lock, 400 mm wheel recommended.

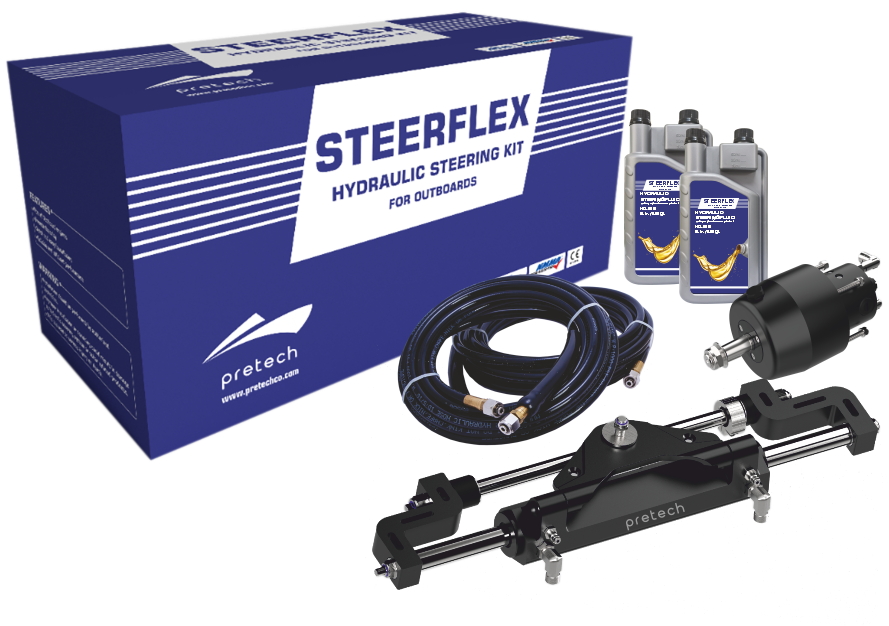

Every kit includes the helm pump, front mount cylinder, two factory crimped hydraulic hoses, hydraulic steering fluid, filling kit and installation guide. Steering wheel, dual station kit, tie rod kit, tiller plates and spare parts are sold separately. Hose length can be customised to order.

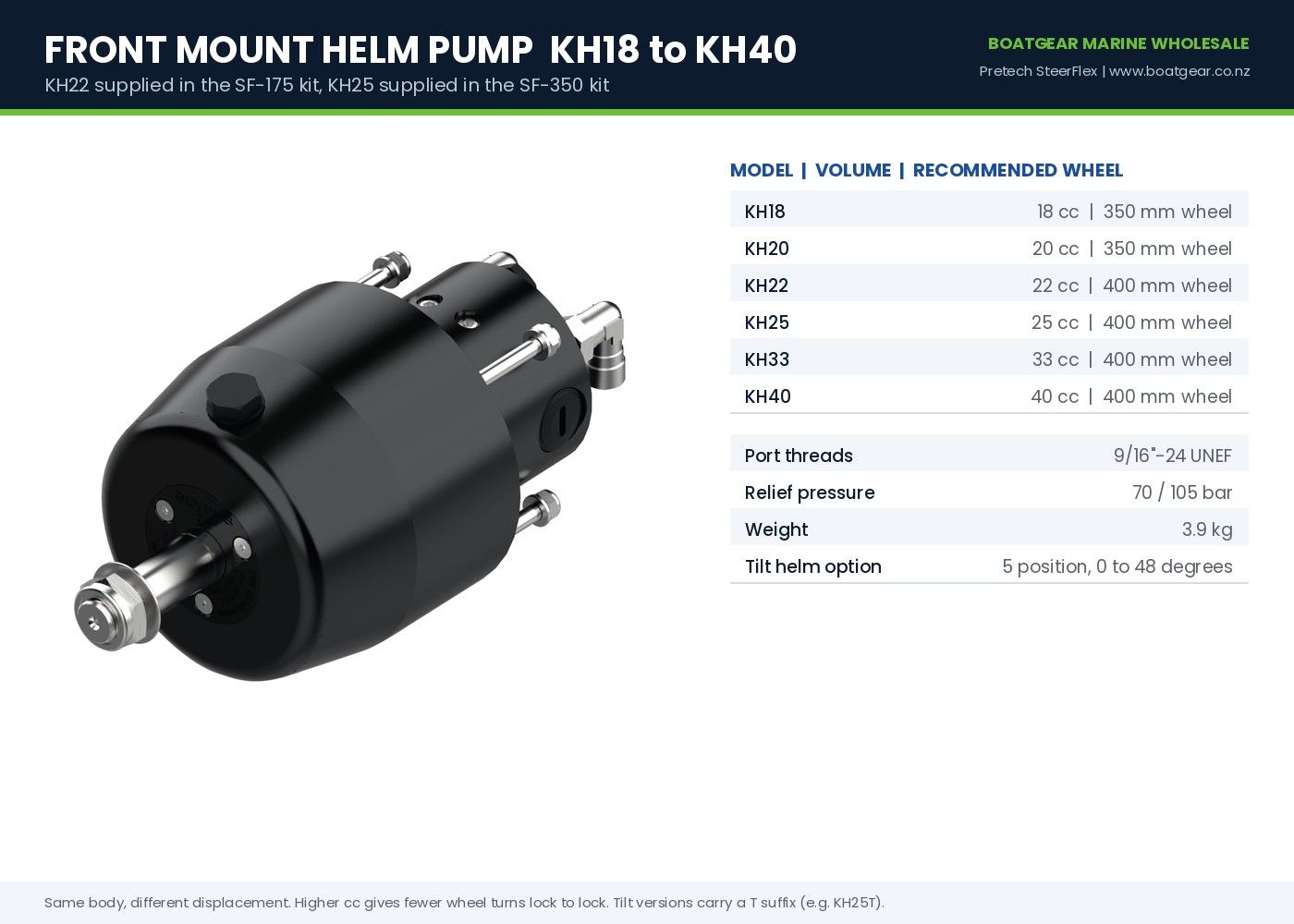

Helm pump specifications
- KH18M: 18 cc, 350 mm wheel (SF-115 kit)
- KH18: 18 cc, 350 mm wheel
- KH20: 20 cc, 350 mm wheel
- KH22: 22 cc, 400 mm wheel (SF-175 kit)
- KH25: 25 cc, 400 mm wheel (SF-350 kit)
- KH33: 33 cc, 400 mm wheel (SF-350-2CD dual cylinder)
- KH40: 40 cc, 400 mm wheel
All helms have 9/16"-24 UNEF ports, 70 / 105 bar relief pressure, weigh 3.9 kg and use a standard 3/4" tapered steering shaft. They need only 5" of space behind the dashboard with a 3" hole. A 5 position tilt helm (0 to 48 degrees) is available as the T version of each model.
Cylinder specifications
- KC-115: 94 cc, 323 kg force, 184 mm stroke, 14 mm piston rod, 2.1 kg, rated to 115 HP

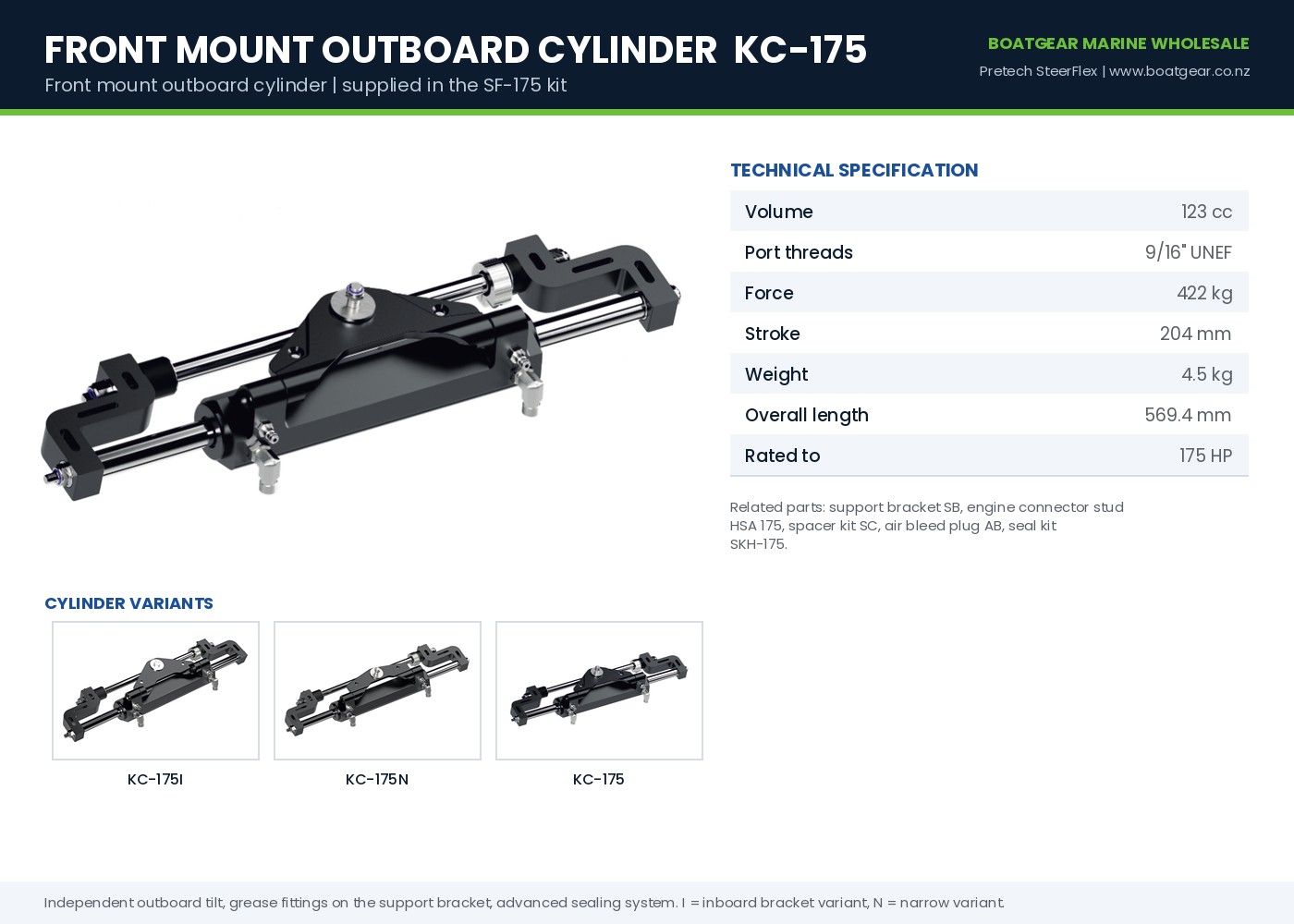

- KC-175: 123 cc, 422 kg force, 204 mm stroke, 16 mm piston rod, 4.5 kg, rated to 175 HP

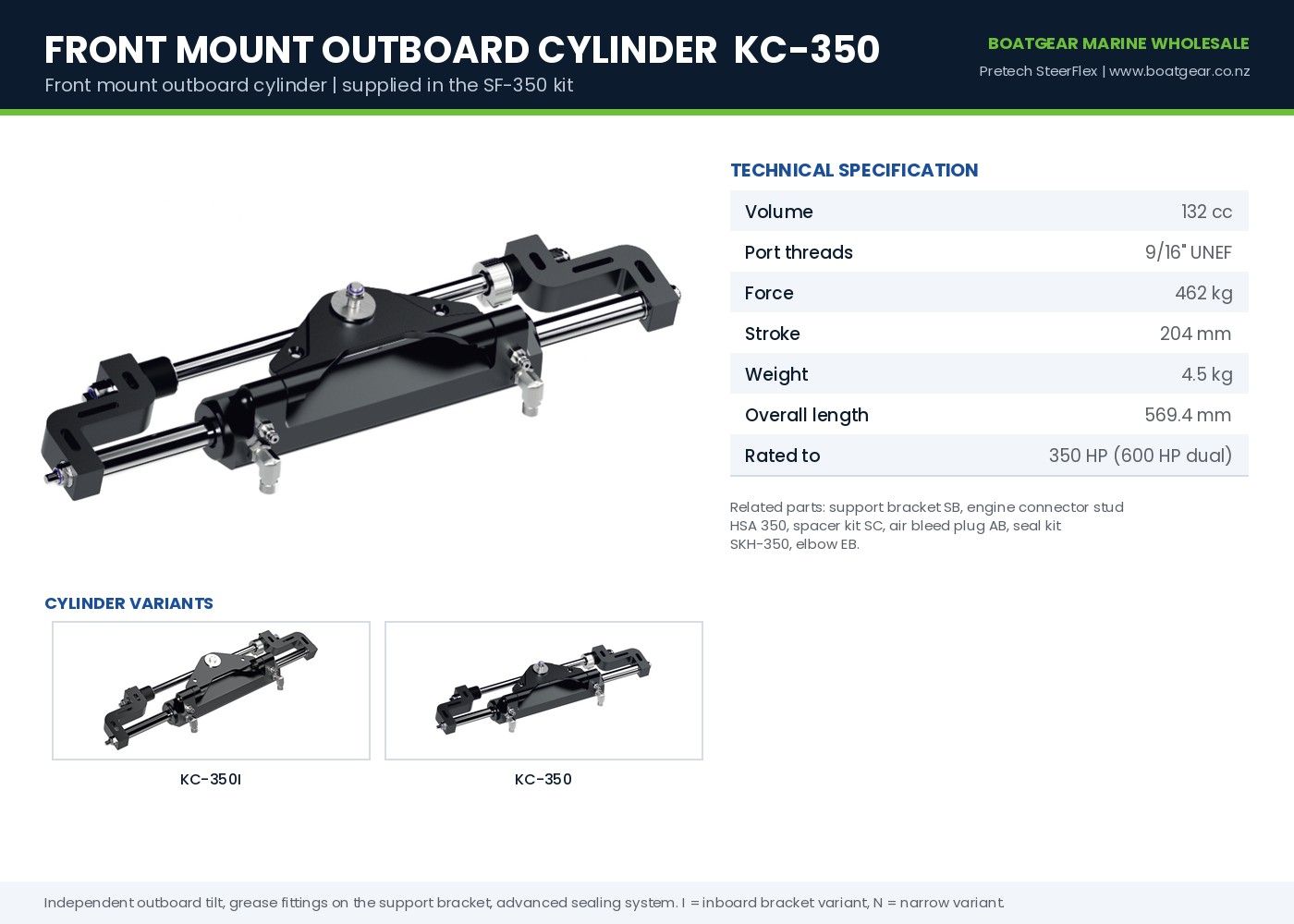

- KC-350: 132 cc, 462 kg force, 204 mm stroke, 20 mm piston rod, 4.5 kg, rated to 350 HP single or 600 HP dual

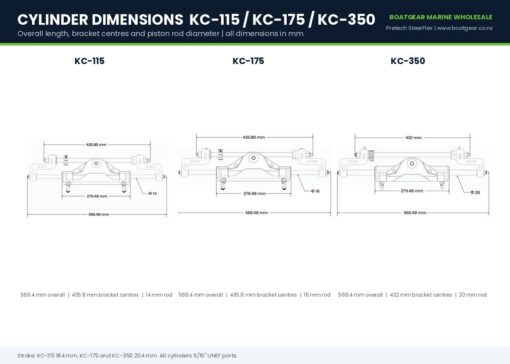

All cylinders are 569.4 mm overall with 9/16" UNEF ports, independent outboard tilt, grease fittings on the support bracket and an advanced sealing system. Each is also available as an I (inboard bracket) or N (narrow) variant.

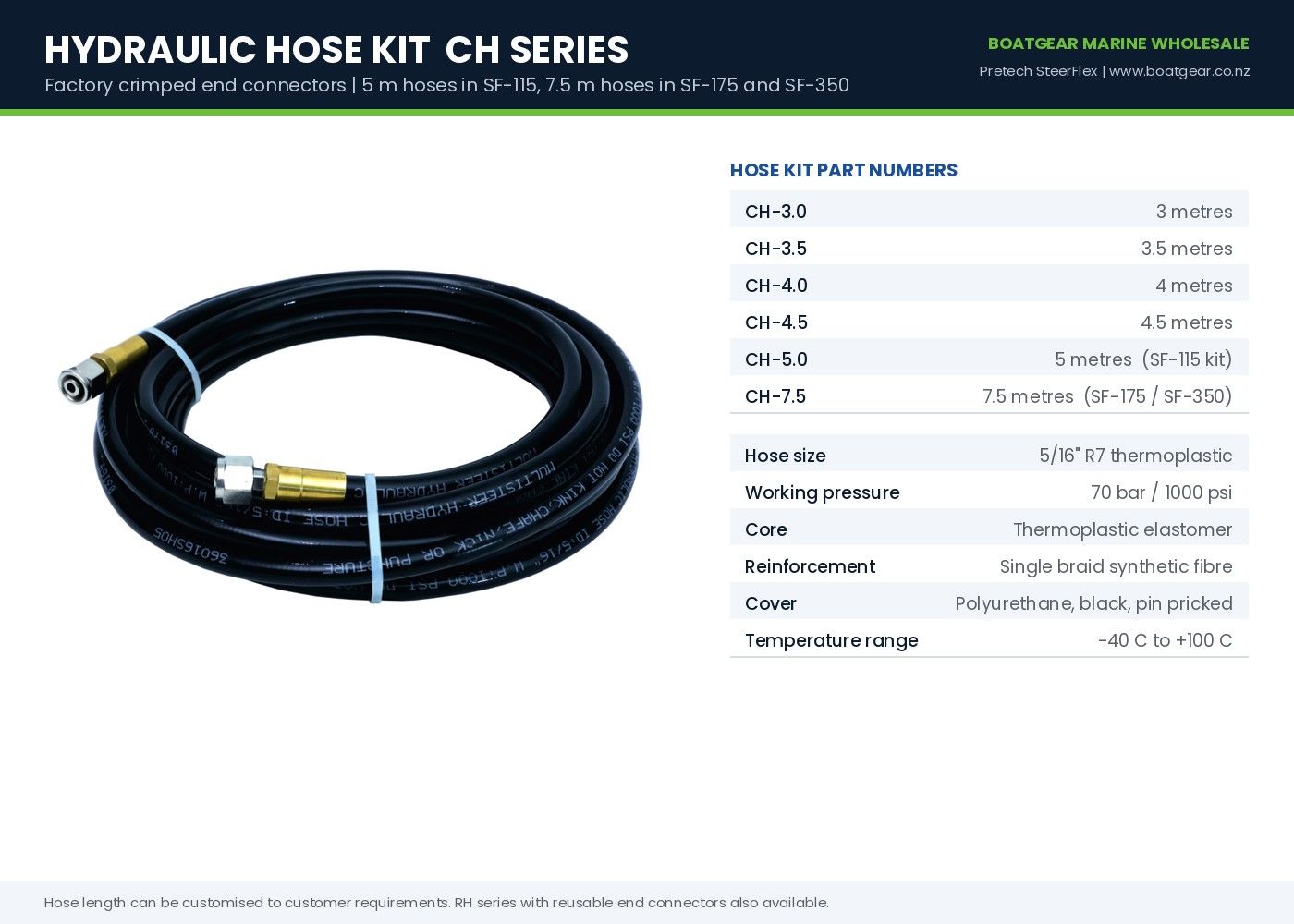

Hydraulic hose
CH series hoses with factory crimped end connectors come in 3, 3.5, 4, 4.5, 5 and 7.5 metre lengths (RH series with reusable connectors also available). 5/16" R7 thermoplastic hose, 70 bar / 1000 psi working pressure, polyurethane cover, rated from -40 C to +100 C.
Application guide, single engine (SF-115)
- Honda 30 to 115 HP, 1992 to date: KC-115 / KC-115I (note A)
- Johnson / Evinrude 40 to 115 HP, 1991 to date: KC-115 / KC-115I (notes A, C)
- Mercury / Mariner 75 to 115 HP, 1984 to date: KC-115 (notes A, C)
- Suzuki 40 to 150 HP, 1986 to date: KC-115 / KC-115I (notes A, C)
- Yamaha 40 to 115 HP, 1986 to date: KC-115 (notes A, B)
- Tohatsu 40 to 115 HP, 1990 to date: KC-115 (note A)
- Selva 90 to 115 HP, 2000 to 2013: KC-115 / KC-115I (note A)
- Neander Marine Dtorque 111, 90 HP, 2017 to date: KC-115
Note A: the outboard clamp brackets may need to be cut or ground down and the outboard bolted directly to the transom to avoid trim and tilt issues. Note B: a Yamaha steering hook (part 63D-48511-00-00) must be installed. Note C: high performance 115 HP outboards and any outboard with a 4 3/4" gear case (such as Command Thrust) must use the SF-350 cylinder. Always verify the model year of your outboard and make sure the splashwell is wide enough for the cylinder before ordering.
Dual outboard order guide (SF-350 series)
- SF-350, single cylinder, single outboard up to 350 HP: KH25, KC-350, 2 x CH-7.5, 2 x KO. 5.3 turns.
- SF-350-1CD, single cylinder, dual outboards up to 450 HP non counter rotating or 600 HP counter rotating: KH25, KC-350, 2 x CH-7.5, 2 x KO, tie rod kit TRX. 5.3 turns.
- SF-350-2CD, dual cylinders, dual outboards up to 600 HP: KH33, 2 x KC-350, 2 x CH-7.5, 4 x CH-1.0, 2 x T-fitting TF, 4 x KO, tie rod kit TRX. 8 turns.
Tie rod kits, T-fittings and additional hoses are sold separately. For triple, quad and penta outboard arrangements, or a second helm station, please contact us.
Related parts (sold separately)
350 mm or 400 mm steering wheel, dual station kit, tiller plates, tie rod kit TRX, seal kits SKH-115 / SKH-175 / SKH-350, helm seal kit SKH, support brackets SB, air bleed plugs AB, hose fittings and hydraulic steering fluid KO. See our Pretech SteerFlex accessories listing.
Please contact us if you have any questions or need help choosing a suitable system for your engine.
