Description

We have a full range of electrical plugs and sockets that cover both cigarette plug types and USB sockets.

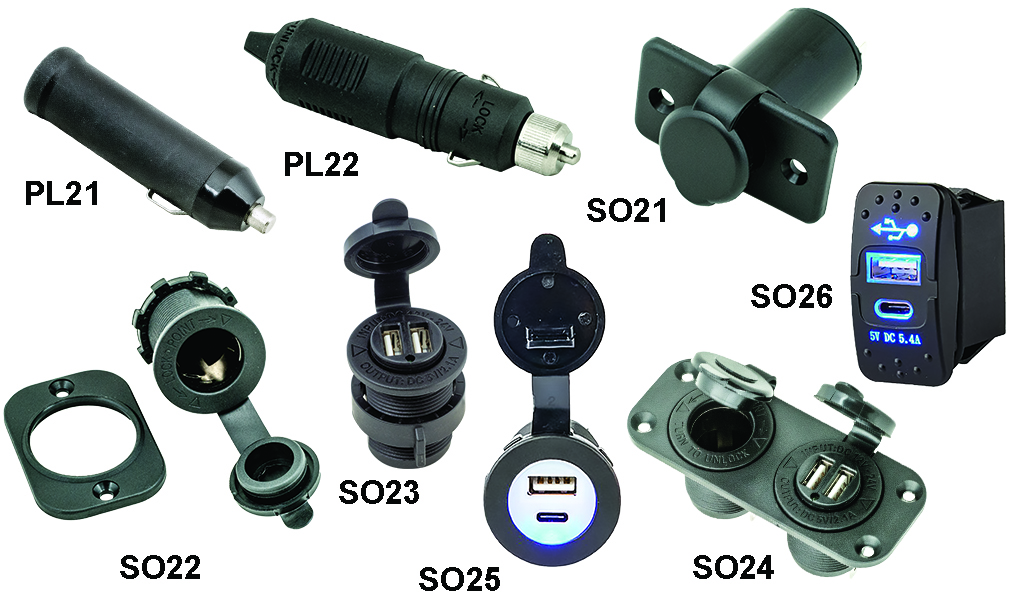

Plugs –

A – PL21 Cigarette lighter style, black plastic

B – PL22 Cigarette lighter style, with LED & lock (to suit SO22)

Sockets, all with rubber caps –

C – SO21 Standard rectangular socket, 57mm x 32mm, one-piece, 15A (5A continuous), 28mm mounting hole

D – SO22 Two-piece socket, circular mounting (36.5mm diameter) with nut from back, or rectangular

(60mm x 42mm) facia with 2 screws, Black polycarbonate, 20A (5A continuous), 30mm mounting hole

E – SO23 Dual USB, twin 5v x 2.1A outlets with overload protection, 12-24v input, 29mm mounting hole

F – SO24 Dual USB plus cigarette socket, twin 5v x 2.1A outlets with overload protection, 12-24v input, 105mm x 42.5mm

G – SO25 Dual USB, round. USB-A (18w) and USB-C (45w). 12/24v. Blue backlighting. Protective cap. Overvoltage, overcurrent & overheat protection.

H – SO26 Dual USB, rocker switch style. USB-A (18w) and USB-C (45w). 12/24v. Blue backlighting. Protective cap. Overvoltage, overcurrent & overheat protection.

Additional information

Size	A – Plug, Black Plastic, B – Plug, Deluxe With Green LED, C – Socket, Standard With Cap, D – Socket, Deluxe With Cap & Nut, E – Socket, Dual USB, 12~24VDC, F – Socket, USB & Cig Lighter, G – Charger Socket, Dual USB-A/USB-C, H – Rocker switch outlet, Dual USB-A/USB-C
