Sender. LEVEL SENSOR STD 240/33

Price range: NZD $113.52 through NZD $326.39

Sender. LEVEL SENSOR STD 240/33

SKU: N/A Category:

Description

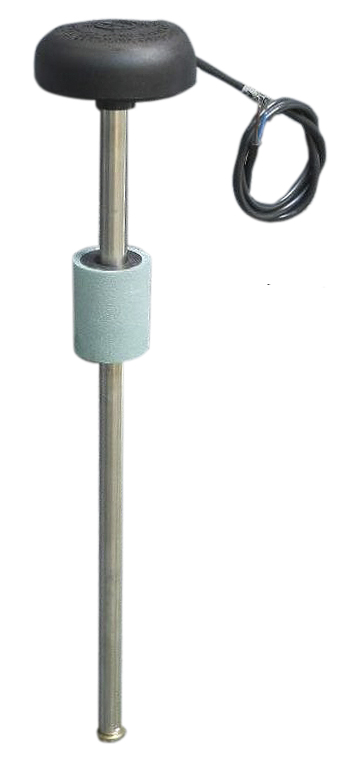

SIC senders are manufactured to the highest standards including a 316 stainless steel stem.

Completely resistant to fuel, oil and acids.

There is a wide selection of lengths to cover nearly every tank depth.

All the senders listed are 33 Ohm full and 240 Ohm empty, which suits most gauges.

(The VDO-type (10-180 Ohm) are available to special order).

Requires a 45mm hole for the float while the flange holes are in the standard 5-hole SAE mounting bolt pattern. The diameter of the circle for the mounting bolts (through their centres) is 54mm.

Additional information

Size

120 mm, 140 mm, 150 mm, 170 mm, 180 mm, 200 mm, 220 mm, 250 mm, 270 mm, 280 mm, 290 mm, 320 mm, 350 mm, 400 mm, 420 mm, 450 mm, 500 mm, 550 mm, 600 mm, 650 mm, 700 mm, 750 mm, 800 mm, 950 mm
